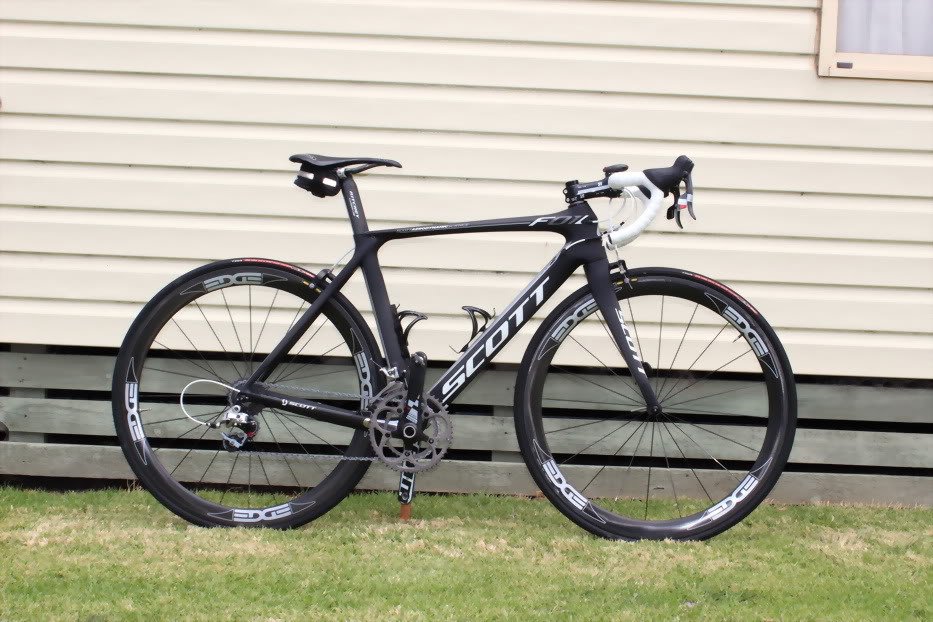

2013 SCOTT Foil Premium Bike Overview

SCOTT Foil Premium Bike

SCOTT Foil Premium Bike

The Scott Foil Premium is an Aero Road bike, developed to be faster and more efficient in all ROAD conditions. Its HMX carbon fiber frame and high end component spec make this THE Premium road bike.

Frame: SCOTT FOIL HMX NET Carbon
Fork: Scott FOIL HMX NET Carbon steerer

Group set: Shimano Dura-Ace Eletronic Shift System
Brakes: Shimano Dura-Ace
Parts: Ritchey WCS Carbon
Wheels: Syncros RR 1.0 carbon clincher

TECHNOLOGY :

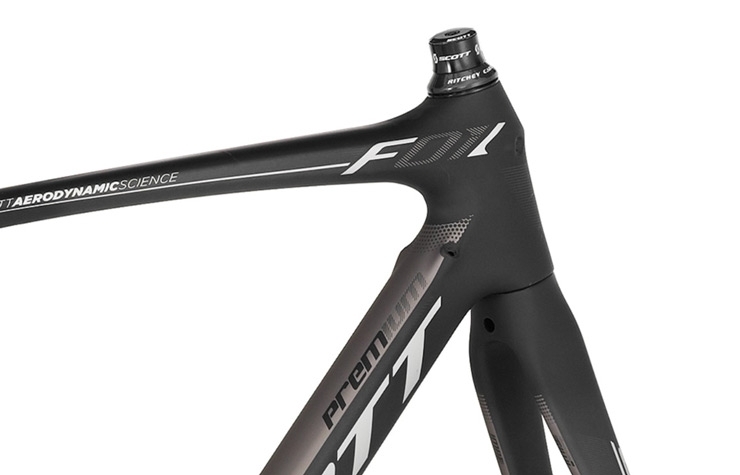

1.   F01 Aero Technology

F01 Technology is based on the theory that a partial airfoil shape without the trailing edge can produce the same aerodynamic advantage as a traditional foil shape. Modern foil shapes are largely based on models and ratios created for airplanes by the National Advisory Committee for Aeronautics (NACA), but because bicycles attain speeds far less than those of airplanes, these ratios do not necessarily apply to bikes. SCOTT Aero Science engineers have thus developed F01 Technology to create unique, bicycle specific tube shapes which maximize aerodynamic efficiency at lower air speeds.

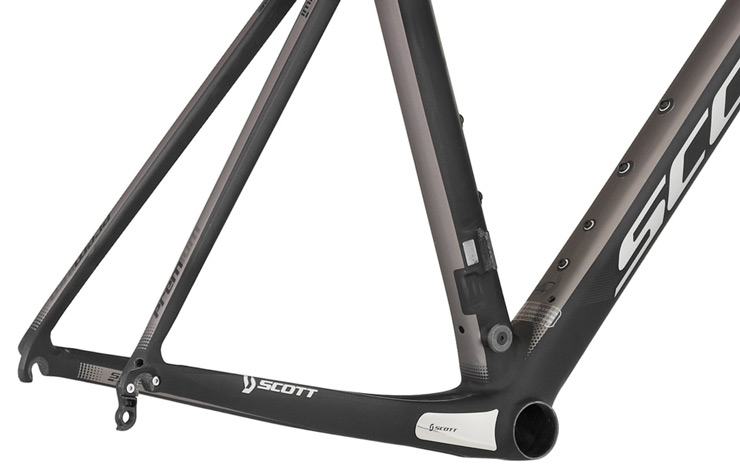

2.   Fuselage Interaction

Every tube in the frame is oriented in relation to the leading edges of the down tube and head tube, as these are the first points of contact for any wind influence. The rear stays are oriented 4 degrees from the seat tube plane to route air from the front triangle around the rear triangle cleanly, and are constructed with a carbon layup that additionally results in vertical compliance.

3.   Integrated Seatclamp

The down tube flares at the oversize bottom bracket junction achieving several design goals. This construction adds lateral stiffness without increasing wall thickness, and the new bottom bracket mold disperses loads to effectively half the stress on this crucial junction. The shape of the down tube and bottom bracket carries seamlessly into the chain stays, further reducing turbulence and creating an additional aero benefit. Also, the drive side outer diameter of the bottom bracket conveniently accommodates an SRM or power meter.

4. Integrated oversize BB

The downtube flares at the oversized bottom bracket junction, achieving several design goals. This construction adds lateral stiffness without increasing wall thickness, and the new bottom bracket mold disperses loads to effectively halve the stress on this crucial junction. The shape of the downtube and bottom bracket carries seamlessly into the chain stays, further reducing turbulence and creating an additional aerodynamic benefit. Also, the drive-side outer diameter of the bottom bracket conveniently accommodates an SRM or power meter.

5.  IMP™ Carbon Mainframe

Our engineers have developed IMP™, the newest technology applied to carbon production. Our proprietary process allows for lighter construction by removing 11% of the material from the headtube intersection while increasing strength by utilizing high modulus stressed fibers for more precise fiber placement in critical areas. To compliment the IMP™ process, our frames benefit from our Naked External Tubeset™, which eliminates the cosmetic carbon layer to shave precious grams. Both HMX and HMF fibers are used in our carbon frames ensuring the utmost durability, security, and longevity for the frame.

6. HMX-NET Carbon Fiber

While we already use the proven HMF composite fiber on all our composite high-end bike models, we have improved upon conventional HMF material. This new fiber, which is produced exclusively for SCOTT, offers 20% more stiffness and is employed on all the areas that need additional rigidity. This new material also allows us to reduce weight and improve riding characteristics. NET stands for Naked External Tubeset, where the frame sheds its exterior cosmetic layer, which saves even more weight.

7.  Shimano Di2 Electronic Shifting

The revolutionary Di2 electronic shifting option with SEIS (Shimano Electronic Intelligent System) takes the already superior Shimano shifting performance to a whole new level. The increased accuracy, smoothness and reliability of electronic shifting makes gear changes faster and virtually eliminates missed shifts.

SPECS

Weight

6,5kg / 14,3299lbs

Frame

SCOTT FOIL HMX NET

IMP Carbon Tech, F01 AERO Tech

Road Race geometry

Replaceable Dropout

STD Seattube / INT BB

Fork

Scott FOIL HMX NET

1 1/8 ” – 1 1/4″ Carbon steerer

Integrated Carbon Dropout

Headset

Ritchey WCS Integrated

Derailleur (Rear)

Shimano Dura-Ace RD-9070

22 Speed Electronic

Derailleur (Front)

Shimano Dura-Ace FD-9070

Eletronic Shift System

Shifters

Shimano Dura-Ace ST-9070

22 Speed Electronic Shift

Brake Levers

.

Brakes

Shimano Dura-Ace BR-9000

Super SLR Dual pivot

Crankset

Shimano Dura-Ace FC-9000

Hollowtech II 34/50 T

BB-Set

INT Dura Ace SM-BB9141

Handlebar

Ritchey WCS Carbon EVO Curve

31.8 Carbon Oversize Anatomic

H’stem

Ritchey C260 Carbon Superlogic

OS 1-1/8″ four Bolt

Pedals

.

Seatpost

RITCHEY FOIL AERO WCS CARBON

Seat

FIZIK Arione 00 Carbon

Hub (Front)

SYNCROS RR1.0

Hub (Rear)

Syncros RR1.0

Chain

Shimano Dura Ace CN-9000

Cassette

Shimano Dura – Ace CS-9000

11-28 T

Spokes

Syncros RR1.0

Rims

Syncros RR 1.0 carbon clincher

16 Front / 20 Rear

Tires

Continental

Grand Prix 4000 700 x 23
