2013 Georgia Gould’s Orbea Terra Road Bike


Orbea Terra

The Terra is Orbea’s first full carbon cyclocross bike, replacing the aluminum Lobular from last season. Creative cables, Orbea’s solution is dubbed Direct Cable Routing, and uses Gore’s fully lined Ride-On cable and housing system.

Orbea Terra
Orbea Terra

The Terra has a unique cable routing system. This system weighs less than a full-housing system, and Gore’s low-friction cable and liner keep things sealed and shifting smoothly. Other Shimano items on the Orbea Terra include CX70 cantilever brakes, along with the Shimano’s PRO handlebar, stem and seatpost

Orbea Terra Specification

Frame: Orbea Terra, 51cm
Fork: Orbea Terra Carbon, tapered 1.125in – 1.5in
Headset: FSA Integrated
Stem: PRO Vibe 7 OS, 100mm x -6 degrees
Handlebar: PRO Vibe 7 OS, 42cm
Tape/grips: PRO Digital Carbon Smart Silicon
Front brake: Shimano CX70
Rear brake: Shimano CX70
Brake levers: Shimano Dura-Ace STI Dual Control ST-7900
Front derailleur: Shimano Dura-Ace FD-7900, or e*thirteen XCX-ST D-Type 1x guide

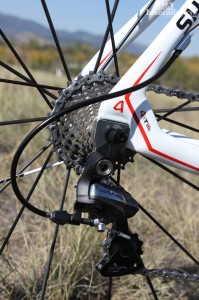

Rear derailleur: Shimano Dura-Ace RD-7900
Shifters: Shimano Dura-Ace STI Dual Control ST-7900
Cassette: Shimano Dura-Ace CS-7900 12-27T
Chain: Shimano Dura-Ace CN-7900
Crankset: Shimano Dura-Ace FC-7900, 172.5mm, 39/46T / Shimano Dura-Ace FC-7900 with a single 39T ring
Bottom bracket: Custom BB30 Adapter
Pedals: Shimano XTR PD-M970
Wheelset: Mavic Ksyrium SLS tubular
Front tire: Clement PDX, 33mm
Rear tire: Clement PDX, 33mm
Saddle: Selle Italia SLR XC
Seatpost: Pro Vibe, 20mm offset
Critical measurements

Rider height: 1.75m / 5’9″
Rider weight: 61kg / 135lb
Saddle height: 730mm
Saddle setback: 55mm
Tip of saddle nose to center of bar: 514mm
Saddle to bar drop: 66mm
Seat tube length, c-t: 520mm
Seat tube length, c-c: 510mm
Head tube length: 129mm
Top tube length: 540mm (horizontal)
Head angle: 72.5 degrees
Seat tube angle: 74 degrees
Wheelbase: 1007mm
Chainstay length: 425mm
Fork offset: 45mm
BB drop: 65mm
Total bike weight: 7.85kg / 17.3lb
